NTNNU406/NJ/NUP/N/NF軸承
- 軸承型號：NU406/NJ/NUP/N/NF
- 系列：圓柱滾子軸承1
- 品牌：NTN
NTN NU406/NJ/NUP/N/NF軸承,圓柱滾子軸承1，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取NTN NU406/NJ/NUP/N/NF配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,NU406/NJ/NUP/N/NF極限轉速,游隙,軸承的圖紙、樣品、價格或者替換產品等！我們是NTN軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
NTNNU406/NJ/NUP/N/NF軸承參數
-
系列圓柱滾子軸承1
-
型號NU406/NJ/NUP/N/NF
-
Boundarydimensions
mm- d
- D
- B
- rsmin2
- r1smin2
- 30
- 90
- 23
- 1.5
- 1.5
-
Basic load ratings
- dynamic
- static
- dynamic
- static
- kN
- kgf
- Cr
- Cor
- Cr
- Cor
- 62.5
- 55.0
- 6,400
- 5,600
-
Limiting speeds
- rpm
- grease
- oil
- 7,300
- 8,500
-
Bearing numbers
- type
- type
- type
- type
- type
- NU
- NJ
- NUP
- N
- NF
- NU406
- NJ
- NUP
- N
- NF
-
Dimensions
- mm
- Fw
- Ew
- J
- max
- max
- min
- 45
- 73
- 50.5
-
Abutment and fillet dimensions
mm
- da
- db
- dc
- dd
- de
- Da
- Db
- ras
- r1as
- min
- min
- max
- min
- min
- min
- min
- min
- max
- max
- 38
- 38
- 44
- 47
- 52
- 82
- 82
- 74
- 1.5
- 1.5
-
Mass
- kg
- type NU
- type N
- ( approx.)
- 0.751

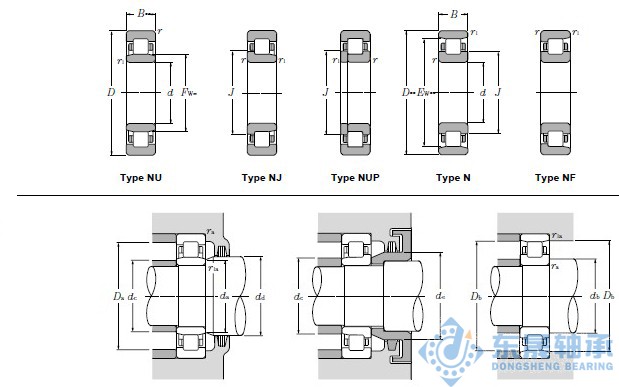

- 圓柱滾子軸承1系列 NU406/NJ/NUP/N/NF圖片
