IKONA4924UU/NA4924U/LRTZ12013546軸承
- 軸承型號：NA4924UU/NA4924U/LRTZ12013546
- 系列：滾針軸承9
- 品牌：IKO
IKO NA4924UU/NA4924U/LRTZ12013546軸承,滾針軸承9，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO NA4924UU/NA4924U/LRTZ12013546代號,基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKONA4924UU/NA4924U/LRTZ12013546軸承參數
-
系列滾針軸承9
-
型號NA4924UU/NA4924U/LRTZ12013546
-
Boundary dimensions mm
- d
- D
- B
- C
- r smin(1)
- Fw
- 120
- 165
- 46
- 45
- 1.1
- 135
-
Identification number
- With two seals
- With one seal
- With two seals
- With one seal
- NA 4924UU
- NA 4924U
- ─
- ─
-
Mass (Ref. )g2 990
-
Standard mounting dimensions
- da
- Da
- Min.
- Max.
- Max.
- 126.5
- 133
- 158.5
-
Basic dynamic load rating
- C
- N
- 178 000
-
Basic static load rating
- C0
- N
- 410 000
-
Allowable rotational
- speed(2)
- rpm
- 1 400
-
Assembled inner ring
- LRTZ 12013546

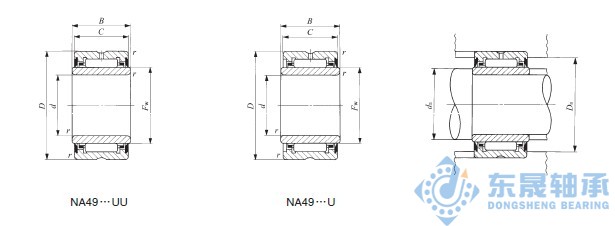

- 滾針軸承9系列 NA4924UU/NA4924U/LRTZ12013546圖片
