IKOGBRI243720UU/GBRI243720U/LRBZ242820軸承
- 軸承型號：GBRI243720UU/GBRI243720U/LRBZ242820
- 系列：滾針軸承13
- 品牌：IKO
IKO GBRI243720UU/GBRI243720U/LRBZ242820軸承,滾針軸承13，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO GBRI243720UU/GBRI243720U/LRBZ242820游隙尺寸,游隙尺寸表,滾子粒數,GBRI243720UU/GBRI243720U/LRBZ242820報價,價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOGBRI243720UU/GBRI243720U/LRBZ242820軸承參數
-
系列滾針軸承13
-
型號GBRI243720UU/GBRI243720U/LRBZ242820
-
Boundary dimensions mm
- d
- D
- B
- C
- Fw
- 38.100（1.5)
- 58.738（2.3125)
- 32.000
- 31.750（1.25)
- 44.450(1.75)
-
Identification number
- With two seals
- With one seal
- GBRI 243720 UU
- GBRI 243720 U
-
Mass (Ref. )g330
-
Standard mounting dimensions
- da
- Da
- (1)
- Min.
- Max.
- Max.
- r as max(1)
- 43.3
- 43.4
- 53.7
- 0.6
-
Basic dynamic load rating
- C
- N
- 58 900
-
Basic static load rating
- C0
- N
- 114 000
-
Allowable rotational
- speed(2)
- rpm
- 1 800
-
Assembled inner ring
- LRBZ 242820

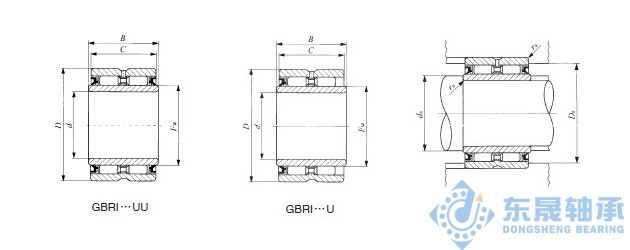

- 滾針軸承13系列 GBRI243720UU/GBRI243720U/LRBZ242820圖片
