IKOCFES8BR/CFES8B/CFES8BUUR/CFES8BUU軸承
- 軸承型號：CFES8BR/CFES8B/CFES8BUUR/CFES8BUU
- 系列：螺栓型滾輪滾針軸承5
- 品牌：IKO
IKO CFES8BR/CFES8B/CFES8BUUR/CFES8BUU軸承,螺栓型滾輪滾針軸承5，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO CFES8BR/CFES8B/CFES8BUUR/CFES8BUU配合安裝尺寸,基本尺寸,滾子粒數,CFES8BR/CFES8B/CFES8BUUR/CFES8BUU價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOCFES8BR/CFES8B/CFES8BUUR/CFES8BUU軸承參數
-
系列螺栓型滾輪滾針軸承5
-
型號CFES8BR/CFES8B/CFES8BUUR/CFES8BUU
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- max
- max
- 19
- 11
- 8
- M 8×1.25
- 10
- 12.2
- 32.2
- 20
- ─
- 0.6
- ─
- ─
- 4
- 0.3
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CFES 8 BR
- CFES 8 B
- CFES 8 BUUR
- CFES 8 BUU
-
Mass (Ref.) g28.5
-
Eccentricity
- ε
- 0.25
-
Mounting dimension
- f
- Min.mm
- 13
-
Maximum tightening torque
- N-m
- 6.5
-
Basic dynamic load rating
- C
- N
- 4 250
-
Basic static load rating
- C0
- N
- 4 740
-
Maximum allowable load
- N
- 4 670

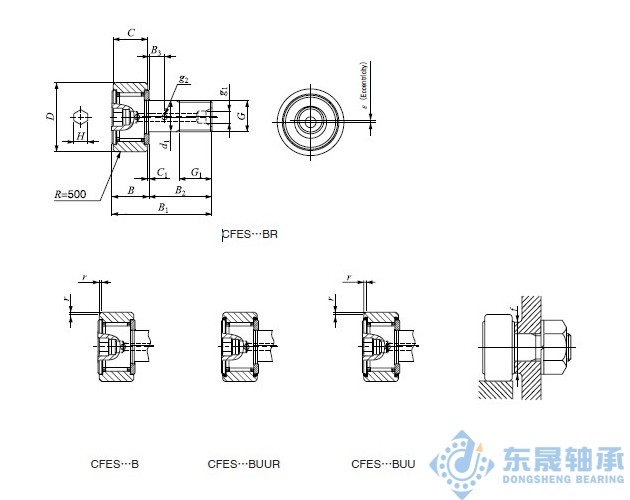

- 螺栓型滾輪滾針軸承5系列 CFES8BR/CFES8B/CFES8BUUR/CFES8BUU圖片
