IKOCF10RM/CF10M/CF10UURM/CF10UUM軸承
- 軸承型號：CF10RM/CF10M/CF10UURM/CF10UUM
- 系列：螺栓型滾輪滾針軸承2
- 品牌：IKO
IKO CF10RM/CF10M/CF10UURM/CF10UUM軸承,螺栓型滾輪滾針軸承2，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO CF10RM/CF10M/CF10UURM/CF10UUM代號,基本尺寸,安裝尺寸,基本額定載荷,精度等級,裝配,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKOCF10RM/CF10M/CF10UURM/CF10UUM軸承參數
-
系列螺栓型滾輪滾針軸承2
-
型號CF10RM/CF10M/CF10UURM/CF10UUM
-
Boundarydimensions
mm- D
- C
- d1
- G
- G1
- B
- B1
- B2
- B3
- C1
- g1
- g2
- H
- r smin(1)
- 22
- 12
- 10
- M10×1
- 12
- 13.2max
- 36.2max
- 23
- ─
- 0.6
- ×4
- ─
- 名稱a5
- 0.3
-
Identification number
- Shield type
- Sealedtype
- With crowned outer ring
- With cylindrical outer ring
- With crowned outer ring
- With cylindrical outer ring
- CF 10 RM
- CF 10 M
- CF 10 UURM
- CF 10 UUM
-
Mass (Ref.) g45
-
Mounting dimension
- f
- Min.mm
- 16
-
Maximum tightening torque
- N-m
- 14.7
-
Basic dynamic load rating
- C
- N
- 5 430
-
Basic static load rating
- C0
- N
- 6 890
-
Maximum allowable load
- N
- 6 890

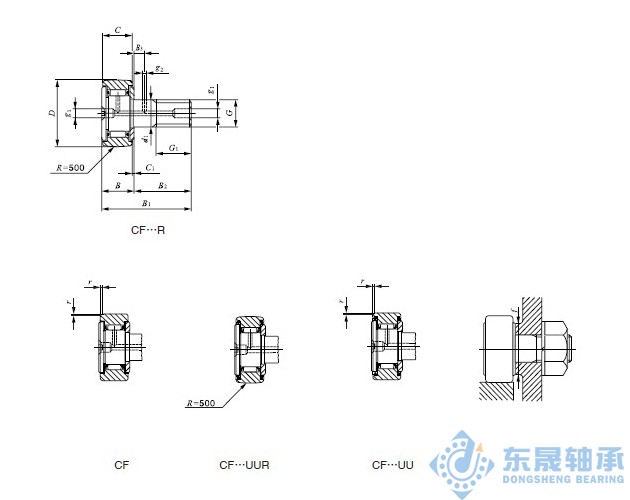

- 螺栓型滾輪滾針軸承2系列 CF10RM/CF10M/CF10UURM/CF10UUM圖片
